EURO CN1 - Series 65 Original

Bending Machine EURO CN1 - Series 65

1 axis bending machine for tube up to 65 mm in diameter

frecciaFill

Data

EURO 65 CN1

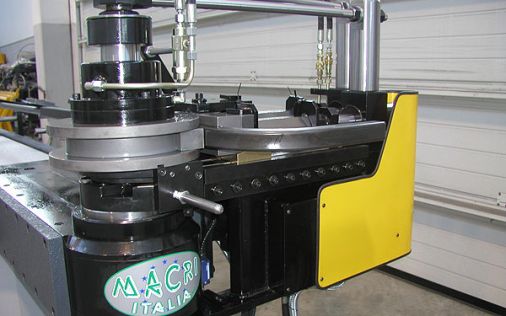

Tube bending machine EURO 65 CN1
The EURO 65 CN1 (Series 65) is a 1 axis (Y) tube for bending stainless steel, iron, copper or brass tubes or tubes in other special alloys up to 65 mm in diameter. The EURO 65 CN1 model features automatic bending and manual advancement and rotation.

The following are fitted as standard:
- heat exchanger;
- early mandrel extraction;
- automatic mandrel lubrication.
EURO CN1 - Series 65
ModelEURO 65 CN1
Axes1 axis (Y)
Tube movementBending
Diameter of tube to be bentUp to 65 mm

Data sheet

FEATURESU.M.EURO
Y Max. bending speed°/1"80
Y Tolerance+/- °0.1
Weight+/- Kg4200
BENDING CAPACITIESU.M.EURO
Round tube R=42 kg/mm2mm65x4
Round stainless steel tubemm60x3
Round tube Alum. Brass Copper Alloysmm65x5
Square tube R=42 kg/mm2mm50x50x2
Rect. tube bent easy waymm30x60x2
Rect. tube bent hard waymm40x55x2
Round bar R=42 kg/mm2mm35
Square solid R=42 kg/mm2mm30x30
Mandrel extraction strokemm80
Max bending angle°195
Working lengthmm3600
Machine extensionsmm1560


EURO CN1 - Series 65
EURO CN1 - Series 65
EURO CN1 - Series 65
EURO CN1 - Series 65
