PROVAR 6 U-D - Series 35 Original

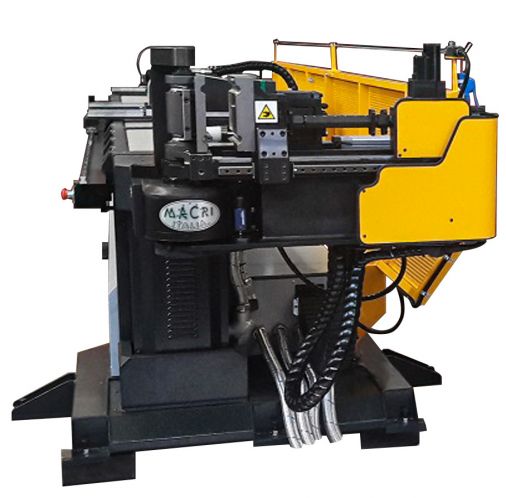

Bending Machine PROVAR 6 U-D - Series 35

6 axes bending machine for tube up to 35 mm in diameter

frecciaFill

Data

PROVAR 6-35 U-D
Tube bending machines PROVAR 6-35 U-D
The PROVAR 6-35 U-D (Series 35) is a fully automatic, 6 axes tube bending machine: bending (Y axis), advancement (X axis) and rotation (Z axis).  The PROVAR 6-35 U-D can bend tubes up to 35 mm in diameter and lateral movement of the positioner and of the mandrel (axes B1 and B2) and up-down movement of the head (axis A).

The PROVAR 6-35 U-D can bend tubes up to 35 mm in diameter and has  two levels of equipment per fixed and variable radius or two different  fixed radii.

The following are fitted as standard:
- heat exchanger;
- early mandrel extraction;
- automatic mandrel lubrication.
PROVAR 6 U-D - Series 35
ModelPROVAR 6-35 U-D
Axes6 axes (Y, X, Z, B1, B2 and A)
Tube movement- Bending (Y axis)
- Advancement (X axis)
- Rotation (Z axis)
- Lateral movement of the positioner (axis B1)
- Lateral movement of the mandrel (axis B2)
- Up-down movement of the head (axis A)
Diameter of tube to be bentUp to 35 mm

Data sheet

FEATURESU.M.PROVAR 6
Y Max. bending speed°/1"200
Y Tolerance+/- °0.1
X Max. traverse speedmm 1"1000
X Tolerance+/- mm0.1
Z Max. speed°/1"540
Z Tolerance+/- °0.1
B1 Max Speedmt/1'24
B1 Tolerance+/- mm0.1
B2 Max Speedmt/1'24
B2 Tolerance+/- mm0.1
A Max. Speedmt/1'6
A Tolerance+/- mm0.1
Weight+/- Kg3500
BENDING CAPACITIESU.M.PROVAR 6
Round tube R=42 kg/mm2mm35x4
Variable curve R=42 kg/mm2
RM min 10 D
mm25x2
Round stainless steel tubemm35x3
Round tube Alum. Brass Copper Alloysmm35x5
Square tube R=42 kg/mm2 mm30x30x2
Rect. tube bent easy waymm20x35x2
Rect. tube bent hard waymm40x25x2
Round bar R=42 kg/mm2mm25
Square solid R=42 kg/mm2mm20x20
Mandrel extraction strokemm60
Max bending angle°195
Working lengthmm3450
Machine extensionsmm1540
