EURO CN1 - Series 90 Original

Bending Machine EURO CN1 - Series 90

1 axis bending machine for tube up to 90 mm in diameter

frecciaFill

Data

EURO 90 CN1

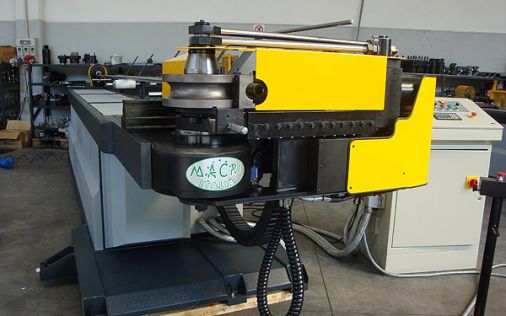

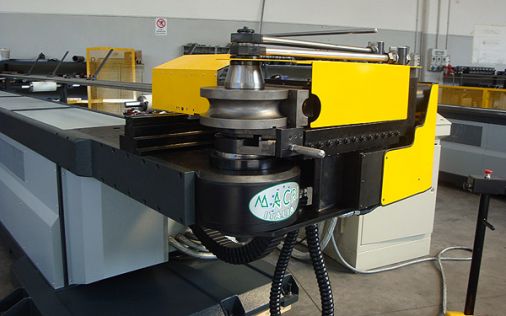

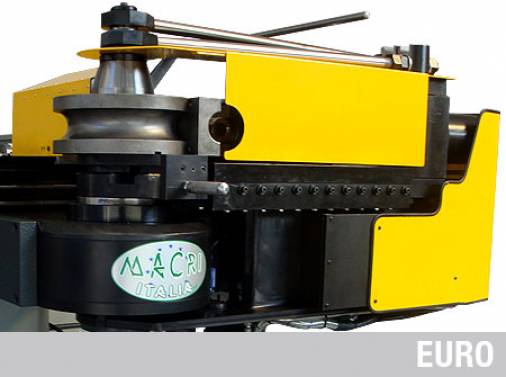

Tube bending machine EURO 90 CN1
The EURO 90 CN1 (Series 90) is a 1 axis (Y) tube for bending stainless steel, iron, copper or brass tubes or tubes in other special alloys up to 90 mm in diameter. The EURO 90 CN1 model features automatic bending and manual advancement and rotation.

The following are fitted as standard:
- heat exchanger;
- early mandrel extraction;
- automatic mandrel lubrication.
EURO CN1 - Series 90
ModelEURO 90 CN1
Axes1 axis (Y)
Tube movementBending
Diameter of tube to be bentUp to 90 mm

Data sheet

FEATURESU.M.EURO
Y Max. bending speed°/1"45
Y Tolerance+/- °0.1
Weight+/- Kg5000
FEATURESU.M.EURO
Y Max. bending speed°/1"45
Y Tolerance+/- °0.1
Weight+/- Kg5000
