PROVAR 5 U-D - Series 45 Original

Bending Machine PROVAR 5 U-D - Series 45

5 axes bending machine for tube up to 45 mm in diameter

frecciaFill

Data

PROVAR 5-45 U-D
Tube bending machines PROVAR 5-45 U-D

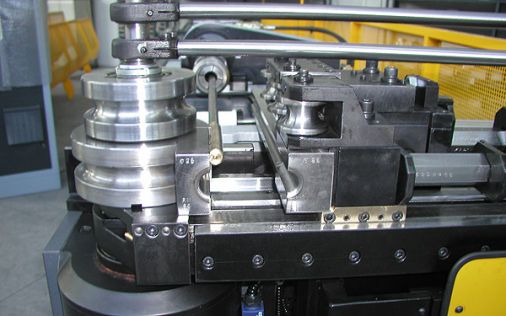

The PROVAR 5-45 U-D (Series 45) is a fully automatic, 5 axes tube bending machine: bending (Y axis), advancement (X axis) and rotation (Z axis). The PROVAR 5-45 U-D can bend tubes up to 45 mm in diameter and lateral  movement of the positioner and the mandrel (axes B1 and B2).

The PROVAR 5-45 U-D can bend tubes up to 45 mm in diameter and has two levels of equipment per fixed and variable radius or two different fixed radii.

The following are fitted as standard:
- heat exchanger;
- early mandrel extraction;
- automatic mandrel lubrication.
PROVAR 5 U-D - Series 45
ModelPROVAR 5-45 U-D
Axes5 axes (Y, X, Z, B1 and B2)
Tube movement- Bending (Y axis)
- Advancement (X axis)
- Rotation (Z axis)
- Lateral movement of the positioner (axis B1)
- Lateral movement of the mandrel (axis B2)
Diameter of tube to be bentUp to 45 mm

Data sheet

FEATURESU.M.PROVAR 5
Y Max. bending speed°/1"150
Y Tolerance+/- °0.1
X Max. traverse speedmm 1"1000
X Tolerance+/- mm0.1
Z Max. gripper rotation speed°/1"450
Z Tolerance+/- °0.1
B1 Max. speedmt/1'24
B1 Tolerance+/- mm0.1
B2 Max. speedmt/1'24
B2 Tolerance+/- mm0.1
Weight+/- Kg4000
BENDING CAPACITIESU.M.PROVAR 5
Round tube R=42 kg/mm2mm45x4
Variable curve R=42 kg/mm2
RM min 10 D
mm35x2
Round stainless steel tubemm40x3
Round tube Alum. Brass Copper Alloysmm45x5
Square tube R=42 kg/mm2 mm40x40x2
Rect. tube bent easy waymm30x45x2
Rect. tube bent hard waymm40x35x2
Round bar R=42 kg/mm2mm30
Square solid R=42 kg/mm2mm25x25
Mandrel extraction strokemm60
Max bending angle°195
Working lengthmm3450
Machine extensionsmm1540


PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45
PROVAR 5 U-D - Series 45

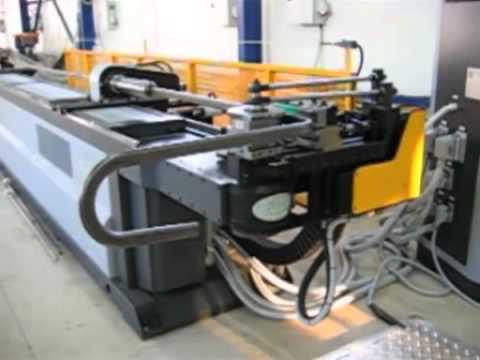

Video
