PROVAR 6 U-D - Series 65 Original

Bending Machine PROVAR 6 U-D - Series 65

6 axes bending machine for tube up to 65 mm in diameter

frecciaFill

Data

PROVAR 6-65 U-D
Tube bending machines PROVAR 6-65 U-D
The PROVAR 6-65 U-D (Series 65) is a fully automatic, 6 axes tube bending machine: bending (Y axis), advancement (X axis) and rotation (Z axis). The PROVAR 6-65 U-D can bend tubes up to 65 mm in diameter and lateral movement of the positioner and of the mandrel (axes B1 and B2) and up-down movement of the head (axis A).

The PROVAR 6-65 U-D can bend tubes up to 65 mm in diameter and has two levels of equipment per fixed and variable radius or two different fixed radii.

The following are fitted as standard:
- heat exchanger;
- early mandrel extraction;
- automatic mandrel lubrication.
PROVAR 6 U-D - Series 65
ModelPROVAR 6-65 U-D
Axes6 axes (Y, X, Z, B1, B2 and A)
Tube movement- Bending (Y axis)
- Advancement (X axis)
- Rotation (Z axis)
- Lateral movement of the positioner (axis B1)
- Lateral movement of the mandrel (axis B2)
- Up-down movement of the head (axis A)
Diameter of tube to be bentUp to 65 mm

Data sheet

FEATURESU.M.PROVAR 6
Y Max. bending speed°/1"80
Y Tolerance+/- °0.1
X Max. traverse speedmm 1"650
X Tolerance+/- mm0.1
Z Max. gripper rotation speed°/1"360
Z Tolerance+/- °0.1
B1 Max. speedmt/1'12
B1 Tolerance+/- mm0.1
B2 Max. speedmt/1'12
B2 Tolerance+/- mm0.1
A Max. speedmt/1'5
A Tolerance+/- mm0.1
Weight+/- Kg5000
BENDING CAPACITIESU.M.PROVAR 6
Round tube R=42 kg/mm2mm65x4
Variable curve R=42 kg/mm2
RM min 10 D
mm60x2
Round stainless steel tubemm60x3
Round tube Alum. Brass Copper Alloysmm65x5
Square tube R=42 kg/mm2mm50x50x2
Rect. tube bent easy waymm30x60x2
Rect. tube bent hard waymm40x55x2
Round bar R=42 kg/mm2mm35
Square solid R=42 kg/mm2mm30x30
Mandrel extraction strokemm80
Max bending angle°195
Working lengthmm3600
Machine extensionsmm1560


PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65
PROVAR 6 U-D - Series 65

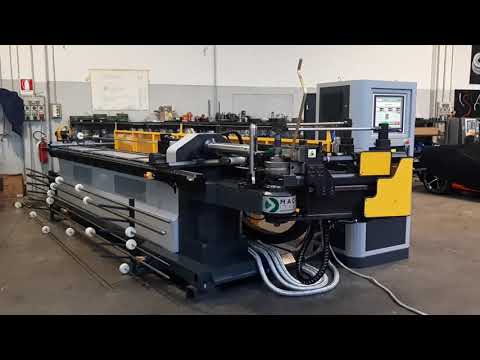

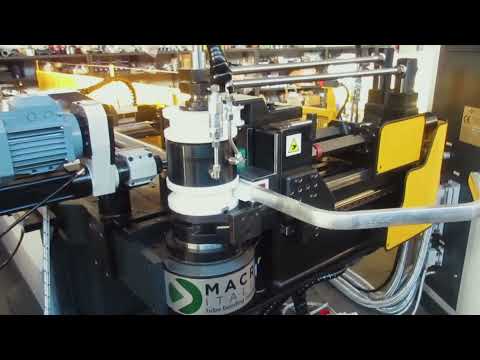

Video
